Lab Bundle

From: 5.210 kr. 6.460 kr. incl VAT

With this bundle, you have everything you need to learn networking or hone your networking skills. By default, this is a five-node network, but feel free to configure the bundle with as many nodes as you want. Just make sure you get one stacking case for each router. With this, you can practice your OSPF, BGP, or even MPLS skills.

Add each device you want in the bundle and adjust the quantity as desired. If you want a default bundle, just put a check in all the check boxes and leave the quantity as is.

Default bundle is 54.618 kr. plus VAT.

hEX lite

5x Ethernet, Small plastic case, 850MHz CPU, 64MB RAM, Most affordable MPLS router, RouterOS L4

hEX PoE lite

5xEthernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4

hAP ac lite

Dual-Concurrent 2.4/5GHz AP, 802.11ac, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support. Wi-Fi 4/Wi-Fi 5. Small but powerful home access point. All the features at a fraction of the cost.

hAP lite

hAP lite: Low-cost home wireless AP with dual-chain 2.4GHz wireless, powered by USB. An inexpensive home router where price matters more than speed. For example, it has only fast Ethernet ports (100 Mbps) and a dual-chain 2.4 GHz Wi-Fi 4, with a max throughput of 54 Mbps.

For the average home that isn't doing anything special and has no special requirements beyond a simple streaming service and web surfing, this device will serve them perfectly. If throughput is a concern, check out some of the higher-end hAP devices at the bottom of the page under "You may also like…"

Read our blog with setup instructions for Icelandic ISPs.

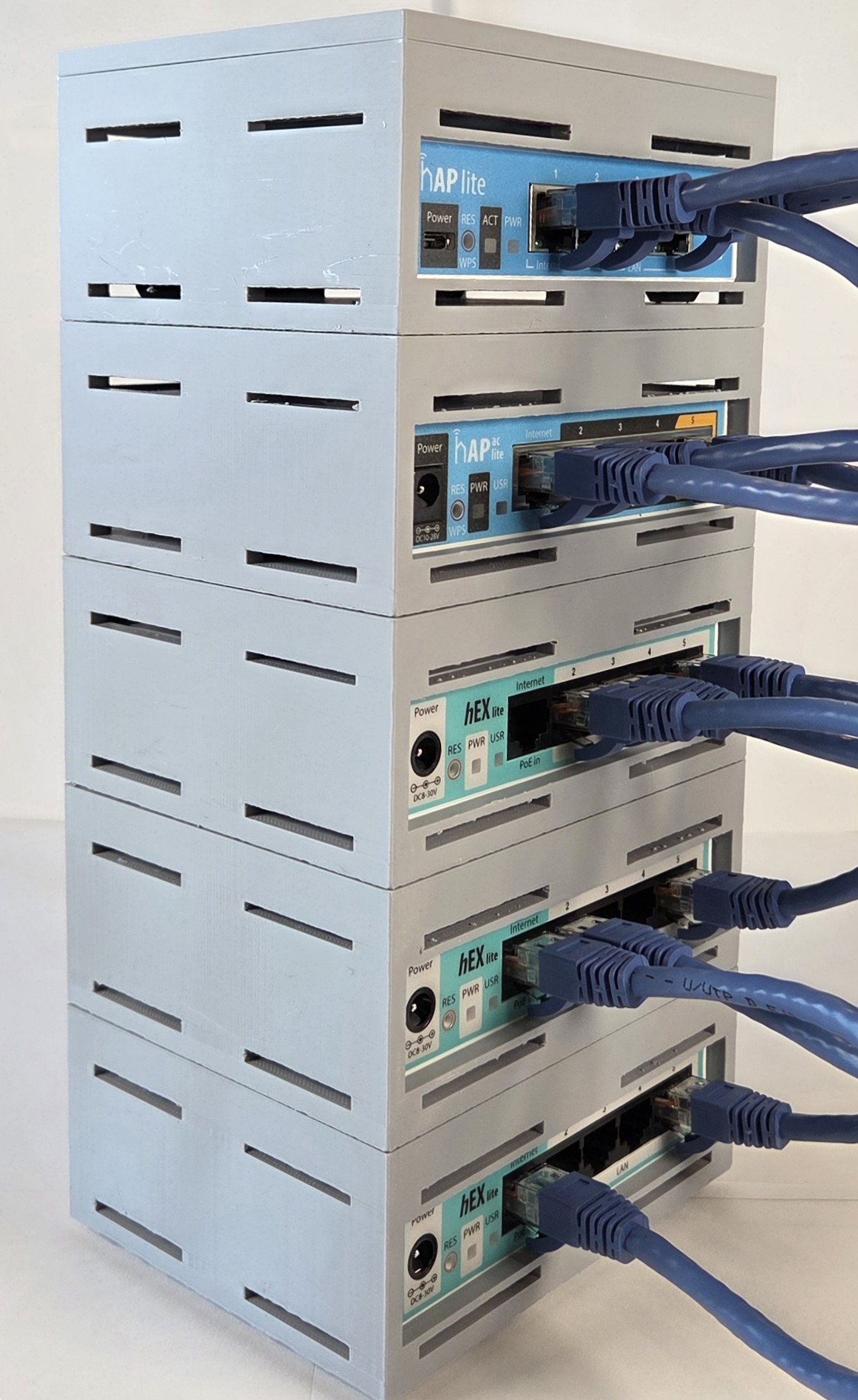

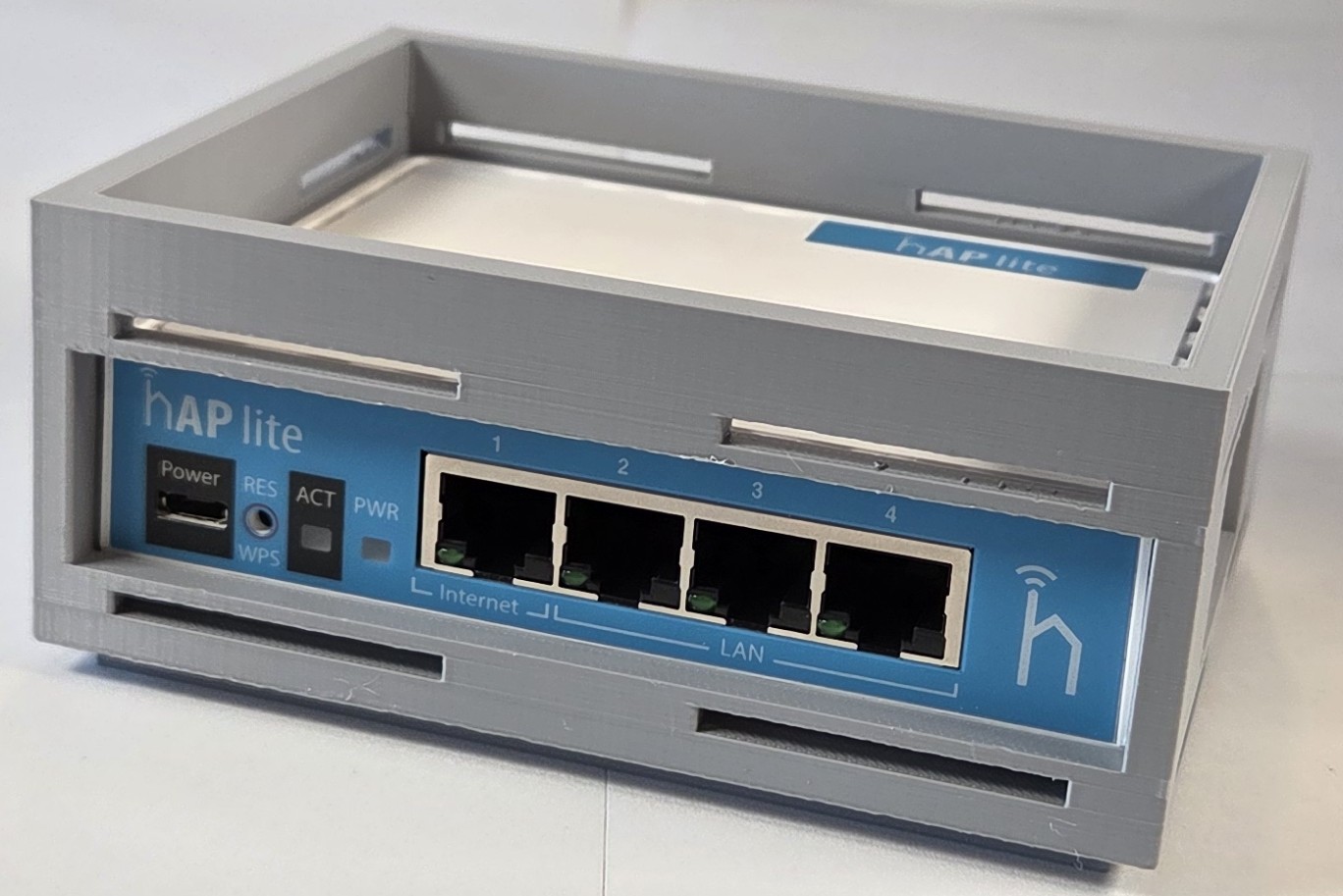

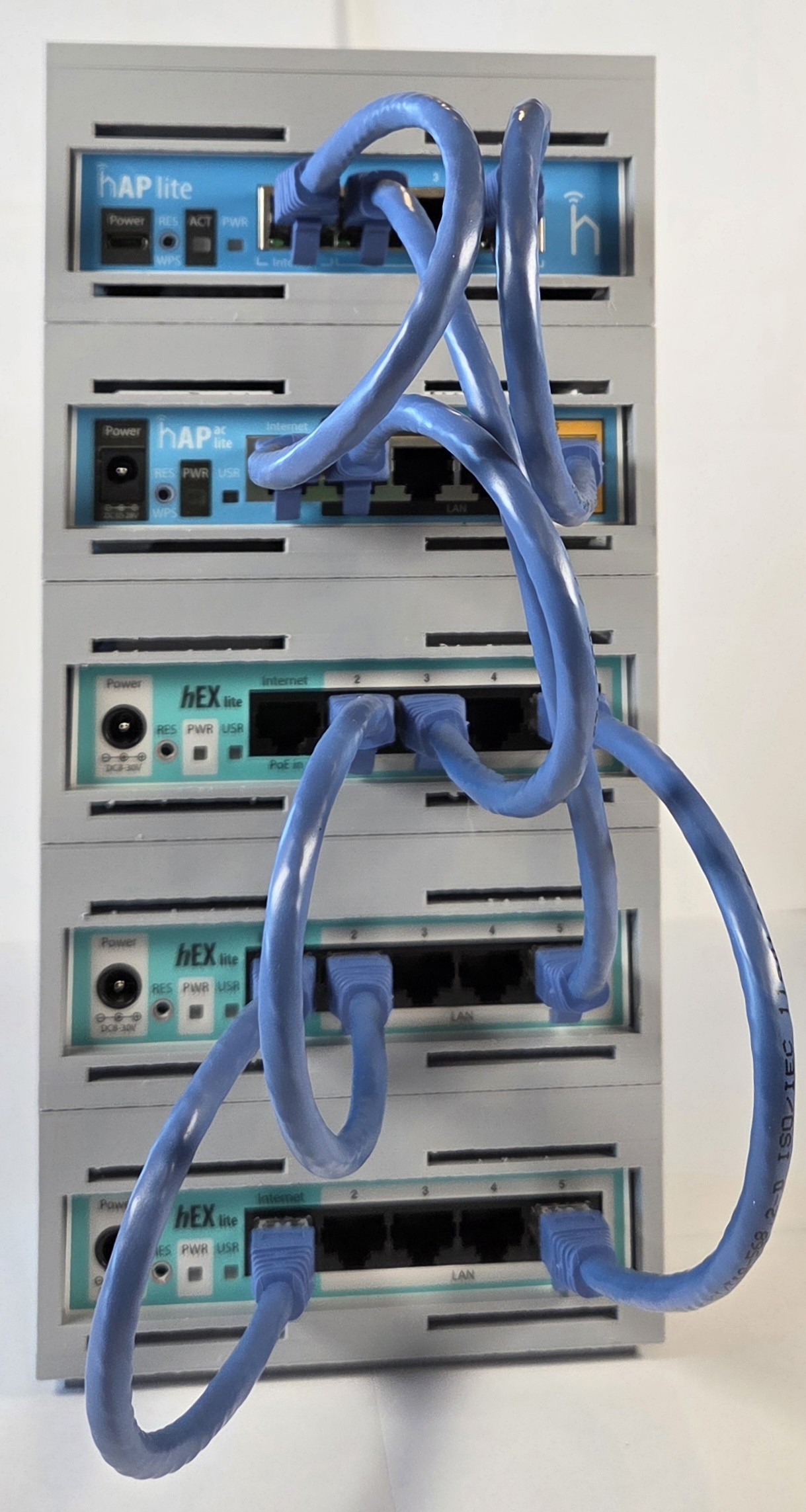

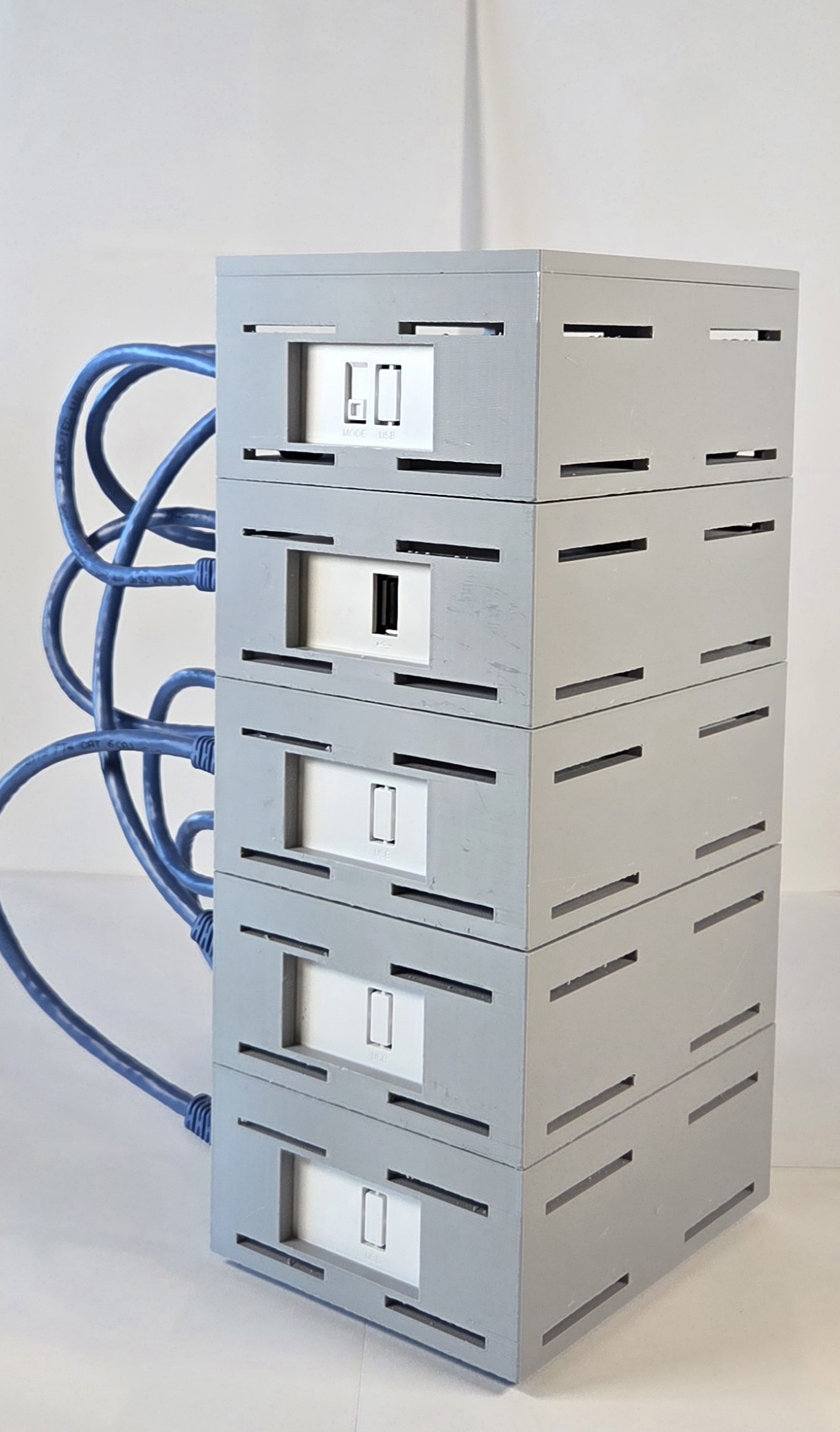

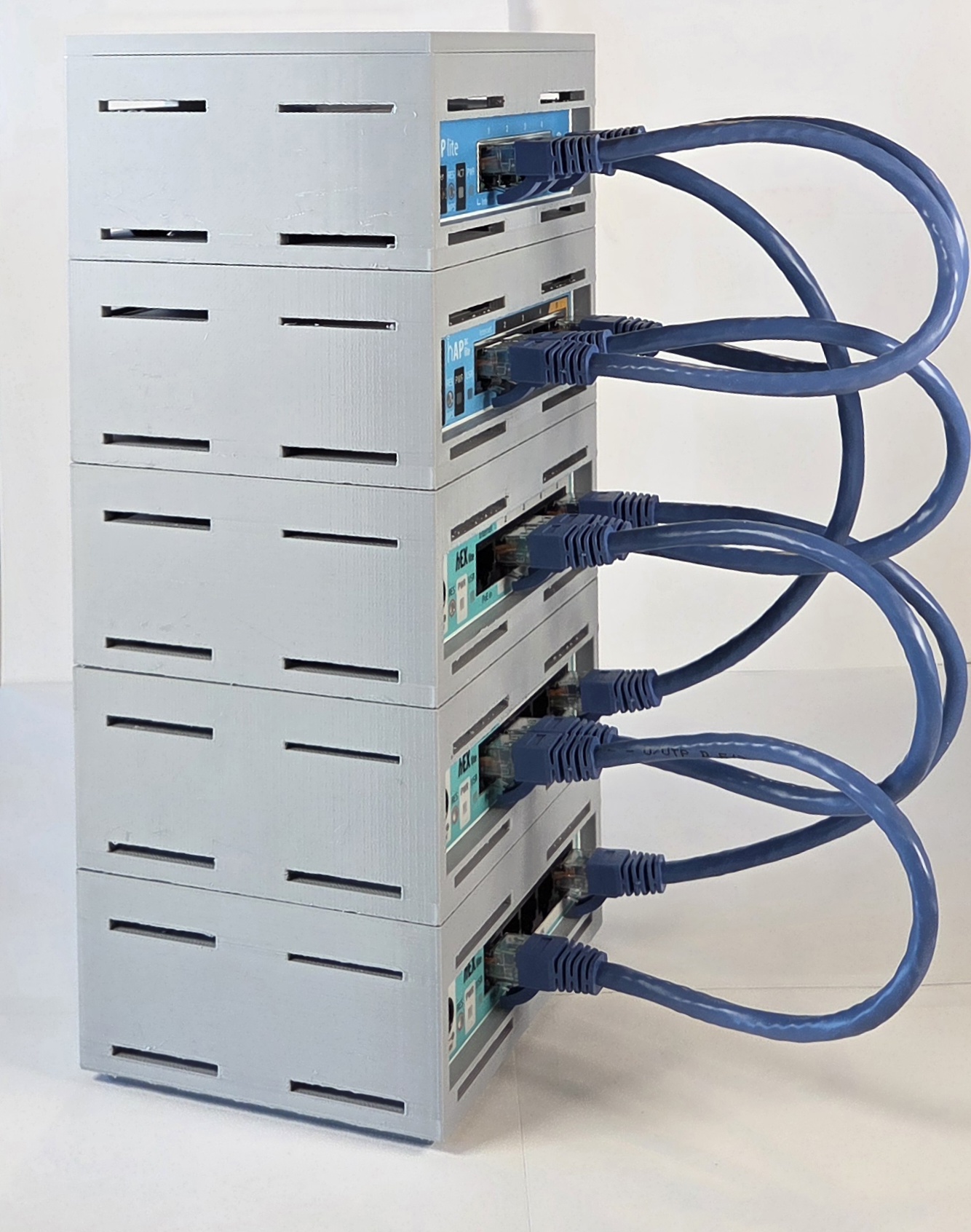

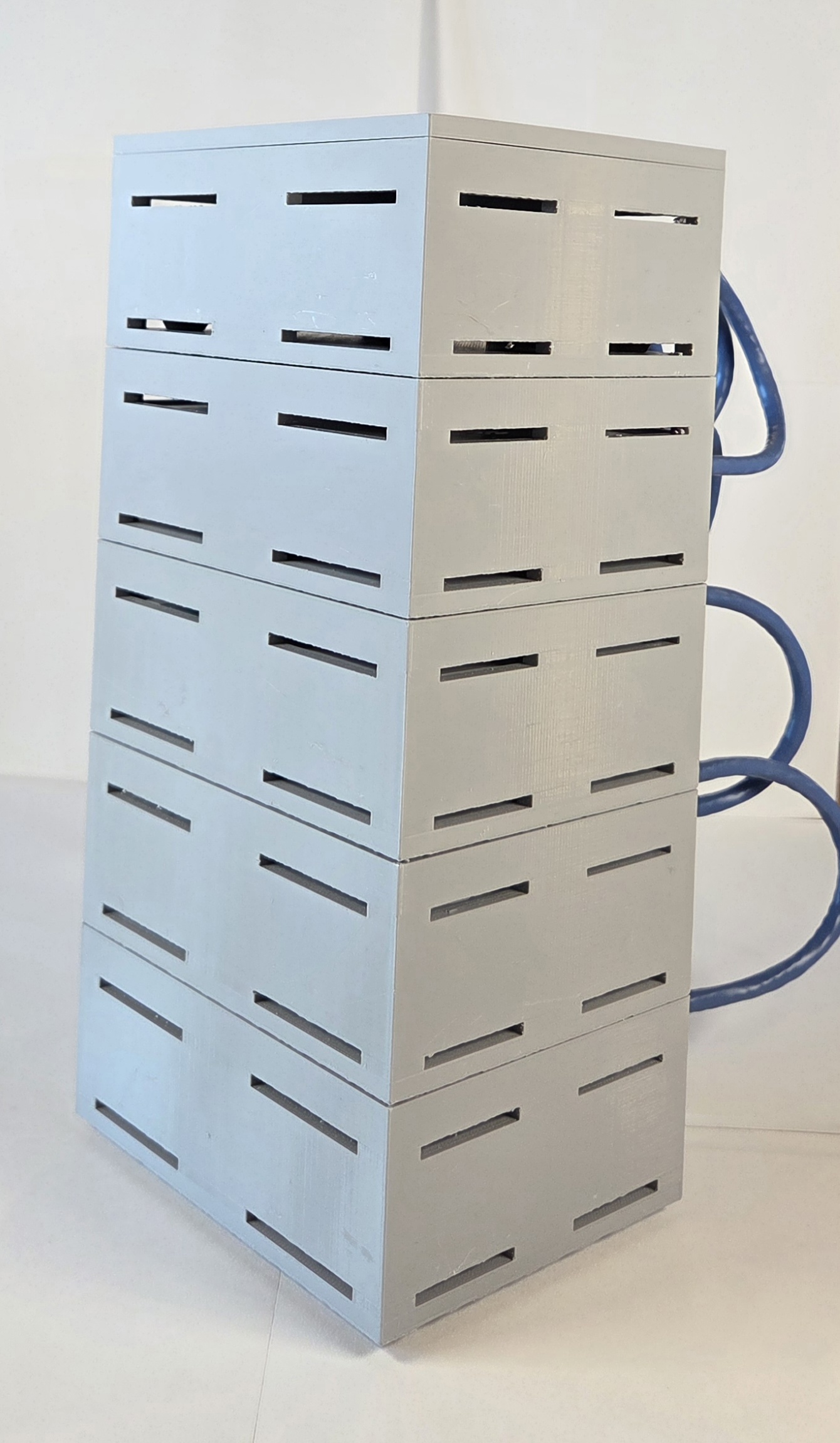

MikroTik hAX stacking case

A custom-designed case that you can place your MikroTik hAX and hAP routers in to enable you to neatly stack them. Great for lab setup as well as any scenario where you need to have multiple devices neatly in one place.



- +

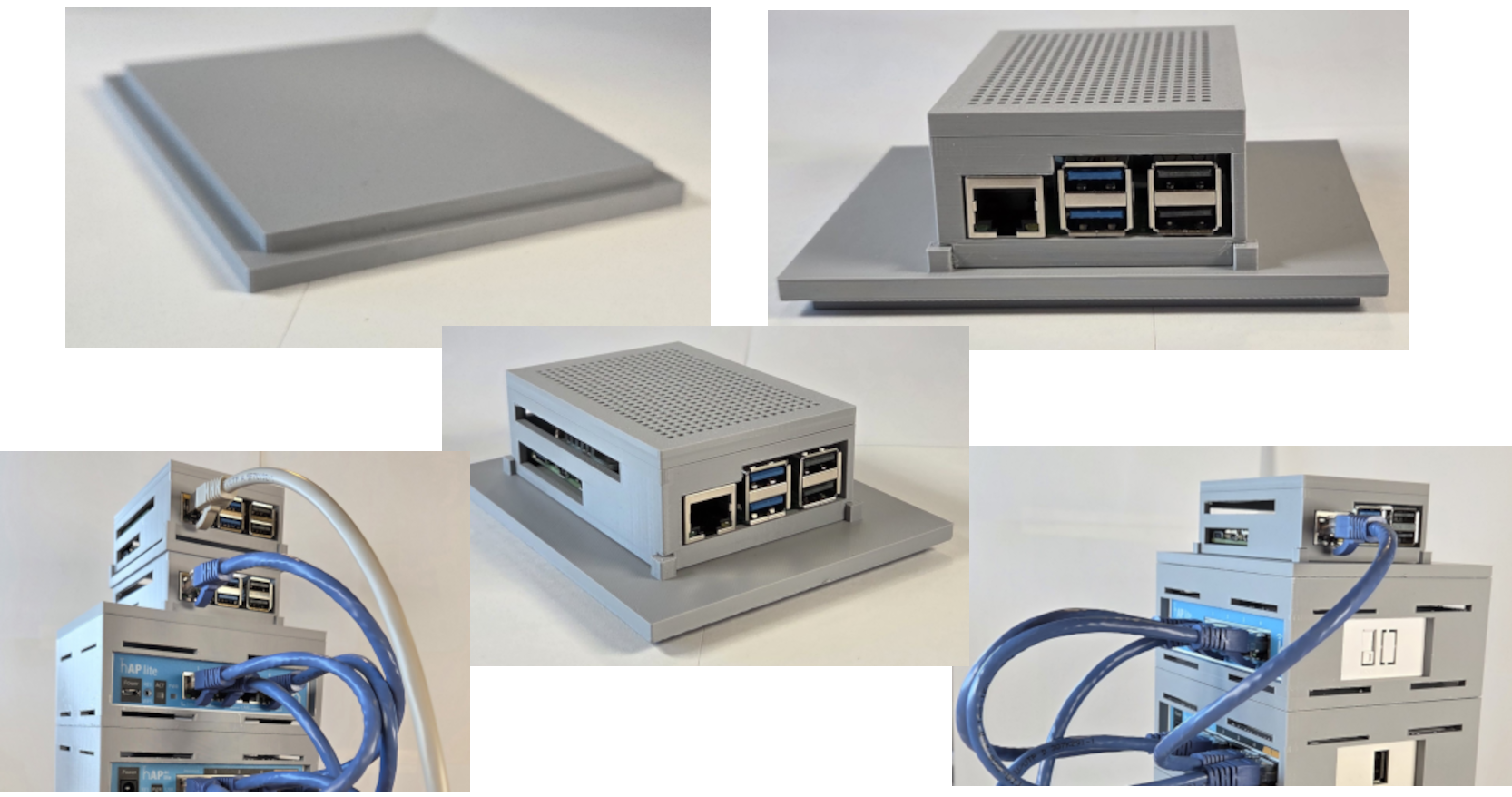

Lid for MikroTik hAX stacking case

This is a lid for the stacking case. Comes in three varieties, with or without pins to keep the Raspberry Pi case in place, and you can choose whether you want the Raspberry Pi case's USB/Ethernet port on the side or the front.

- +

USB 3.0 to Gigabit Ethernet LAN Network Adapter – High-Speed Wired Internet for MacBook, Laptop, and Desktop

Upgrade to a high-speed wired connection with this plug-and-play USB 3.0 to Gigabit Ethernet adapter. Supports 10/100/1000 Mbps, backward compatible with USB 2.0, and works with Windows, macOS, and Linux. Compact, bus-powered, and ideal for gaming, streaming, and stable internet access. No drivers needed for most systems—just connect and go.

Ethernet Patch cords, Cat5E, Cat6A, Cat8

High-quality Copper Ethernet Patch Cables in Cat5E FTP, Cat6A U/UTP (24AWG PVC), and Cat8 SFTP (26AWG CM). Available in various lengths, supporting speeds up to 40Gbps.

Ethernet Patch cords, Cat5E, Cat6A, Cat8

High-quality Copper Ethernet Patch Cables in Cat5E FTP, Cat6A U/UTP (24AWG PVC), and Cat8 SFTP (26AWG CM). Available in various lengths, supporting speeds up to 40Gbps.

- +
SKU: LabKit Category:
Guaranteed Safe Checkout

With this bundle, you have everything you need to learn networking or hone your networking skills. By default, this is a five-node network, but feel free to configure the bundle with as many nodes as you want. Just make sure you get one stacking case for each router. With this, you can practice your OSPF, BGP, or even MPLS skills.

Add each device you want in the bundle and adjust the quantity as desired. If you want a default bundle, just put a check in all the check boxes and leave the quantity as is.

Default bundle is 54.618 kr. plus VAT.

hEX lite

Weight 0,325 kg
Dimensions 11,3 × 8,9 × 2,8 cm
Dimensions

113x89x28mm. Weight without packaging and cables: 129g

Product code

RB750r2

Switch chip model

QCA9533

RouterOS license

4

Storage type

FLASH

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

Max power consumption

2 W

Cooling type

Passive

Certification

CE, EAC, RoHS

IP

IP20

Architecture

MIPSBE

CPU

QCA9533

CPU core count

1

CPU nominal frequency

850 MHz

License level

4

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

PoE in

PoE out

No

PoE in input Voltage

6-30 V

Number of DC inputs

2

DC jack input Voltage

6-30 V

Max power consumption (W)

2 W

10/100 Ethernet ports

5

10/100/1000 Ethernet ports

0

2.5G Ethernet ports

0

USB ports

0

Ethernet Combo ports

0

SFP+ ports

0

1G/2.5G/5G/10G Eth ports

0

SIM slots

0

hEX PoE lite

Weight 0,68 kg
Dimensions 11,3 × 8,9 × 2,8 cm
Dimensions

113x89x28mm

Product code

RB750UPr2

Switch chip model

QCA9531

RouterOS license

4

Storage type

FLASH

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

Max power consumption

51 W

MaxUsage wout attachment

3 W

Cooling type

Passive

MaxOut/port (18-30v)

1 A

Max total out (A)

2 A

Number of USB ports

1

USB Power Reset

Yes

Max USB current (A)

1

Current Monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes

Certification

CE, EAC, RoHS

IP

20

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

License level

4

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

PoE in

PoE out

Passive PoE

PoE-out ports

Ether2-Ether5

PoE in input Voltage

8-30 V

Number of DC inputs

2

DC jack input Voltage

8-30 V

Max power consumption (W)

3 W/51 W

10/100 Ethernet ports

5

10/100/1000 Ethernet ports

0

2.5G Ethernet ports

0

USB ports

1

Ethernet Combo ports

0

SFP+ ports

0

1G/2.5G/5G/10G Eth ports

0

SIM slots

0

USB slot type

USB type A

hAP ac lite

Weight 0,37 kg
Dimensions 11,3 × 8,9 × 2,8 cm
Dimensions

113 x 89 x 28mm

Product code

RB952Ui-5ac2nD

Switch chip model

QCA9531

RouterOS license

4

Storage type

FLASH

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-30°C to 70°C

Wifi 2.4GHz Max Data rate

300 Mbit/s

Wifi 2.4GHz chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Wireless 2.4 GHz chip model

QCA9531

Wireless 2.4 GHz generation

Wi-Fi 4

Wifi 5GHz Max Data rate

433 Mbit/s

Wifi 5GHz chains

1

Wireless 5 GHz standards

802.11a/n/ac

Wireless 5 GHz chip model

QCA9887

Wireless 5 GHz generation

Wi-Fi 5

WiFi speed

AC750

Number of USB ports

1

USB Power Reset

Yes

Max USB current (A)

1

Max power consumption

20 W

MaxUsage wout attachment

8 W

Cooling type

Passive

MaxOut/port (18-30v)

500 mA

Max total out (A)

500 mA

Certification

CE, EAC, FCC, IC, RoHS

IP

IP20

Ingress Protection

IP20

Wi-Fi Gen

5

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

License level

4

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

PoE in

PoE out

Passive PoE

PoE-out ports

Ether5

PoE in input Voltage

10-28 V

Number of DC inputs

2

DC jack input Voltage

10-28 V

Max power consumption (W)

8 W/20 W

Wireless 2.4GHz num chains

2

Antenna gain dBi for 2.4 GHz

1.5

Wireless 5GHz num chains

1

Antenna gain dBi for 5 GHz

2

10/100 Ethernet ports

5

10/100/1000 Ethernet ports

0

2.5G Ethernet ports

0

USB ports

1

Ethernet Combo ports

0

SFP+ ports

0

1G/2.5G/5G/10G Eth ports

0

SIM slots

0

USB slot type

USB type A

hAP lite

Weight 0,29 kg
Dimensions 19 × 12 × 6 cm
Ingress Protection

n/a

Product code

RB941-2nD

Switch chip model

QCA9533-BL3A

RouterOS license

4

Storage type

FLASH

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-20°C to 60°C

Wifi 2.4GHz Max Data rate

300 Mbit/s

Wifi 2.4GHz chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Wireless 2.4 GHz chip model

QCA9533

Wireless 2.4 GHz generation

Wi-Fi 4

MicroUSB input Voltage

5 V

Max power consumption

3.5 W

Cooling type

Passive

Certification

FCC, IC

Wi-Fi Gen

4

Architecture

SMIPS

CPU

QCA9533

CPU core count

1

CPU nominal frequency

650 MHz

License level

4

Operating System

RouterOS

Size of RAM

32 MB

Storage size

16 MB

PoE in

PoE out

No

Number of DC inputs

1

Max power consumption (W)

3.5 W

Wireless 2.4GHz num chains

2

Antenna gain dBi for 2.4 GHz

1.5

10/100 Ethernet ports

4

10/100/1000 Ethernet ports

0

2.5G Ethernet ports

0

USB ports

0

Ethernet Combo ports

0

SFP+ ports

0

1G/2.5G/5G/10G Eth ports

0

SIM slots

0

MikroTik hAX stacking case

Weight 0,08 kg
Dimensions 12,5 × 10 × 15,5 cm
Color

Black, Blue, Grey, Orange, White

Lid for MikroTik hAX stacking case

Weight 0,05 kg
Dimensions 12,5 × 10 × 1 cm
Color

Black, Blue, Grey, Orange, White

USB 3.0 to Gigabit Ethernet LAN Network Adapter – High-Speed Wired Internet for MacBook, Laptop, and Desktop

Interface

USB 3.0 (Type-A) to RJ45 Gigabit Ethernet

Ethernet Speed

10/100/1000 Mbps

Standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Power Source

Bus-powered (no external adapter needed)

Dimensions

Compact and portable design

Certifications

CE, FCC, RoHS compliant

Ethernet Patch cords, Cat5E, Cat6A, Cat8

Length

25cm

Category

Cat 6A

Ethernet Patch cords, Cat5E, Cat6A, Cat8

Length

10m, 1m, 25cm, 2m, 3m, 50cm, 5m, 6m

Category

Cat 5E, Cat 6 LED, Cat 6A, Cat 8
